This product range comprises turned brass pulleys or sheave wheels and specially made Chloroprene rubber (CR) drive belts.  The belts are square in cross section and are closely related to those found in mini voice recorders of the tape variety and many
other small mechisms in audio and video machines. They will not take on a 'set' (like rubber bands do) if left stretched permanently
for many years so long as the stretch no more than 10%. At present I have 5.5mm, 6.5mm, 7.5mm, 10mm & 12mm ID belts which can be used to make up an over 3.5:1 reduction when used with a 1.1mm or 1.2mm root pulley and a 5mm root pulley.  The full range of available pulley root dimension is 1.1mm, 1.2mm, 1.7mm, 3mm & 5mm. The pulleys' grooves are Vee shaped and the 'root' is the minimum radius at the bottom of the Vee. The pulley OD is generally 1mm larger so for example the 5mm root pulley is only 6mm OD and the overall volume taken up by two pulleys and a belt is smaller than for spur gears or the reduction better. The 1.1mm root pulley is supplied with a 0.8mm centre hole to match my micro motors and the 1.2mm with a 1mm centre hole for my mini motor. The other pulleys have 1.5mm diameter centre hole to match standard shafting, wheelsets and larger motors like the Mashima range.  All five sizes of pulley and five sizes of belt are currently available in my
online shop
US Dollar/Euro pricing option:-





Postage (P&P) Rates for any quantity:-
Within the UK - £1.50
Anywhere outside the UK - £3
Payment by cheque on a UK Bank or UK postal orders payable to N. Lawton or
ONLINE SHOP please.
Drive Components
Return to Home Page
Email Contact:-
NigelLawton009@Yahoo.com
Online Shop - Click Here
Nigel Lawton 009
By mail order or online from:
Nigel Lawton
77 Katherine Way
Seaford
East Sussex BN25 2XF
United Kingdom
Email
NigelLawton009@Yahoo.com
Shipping & Handling Rates for any quantity anywhere outside the UK:-

Option 1
Payment by US Dollar or Euro bills or  online  - US $6 or €5 S&H.

Option2
Payment by checks on USA based banks in $ and European banks in  € or Wells Fargo international money orders in US $ payable to N. Lawton - US $16 or €13 S&H.
(Please note the additional handling charge of $10/€8 is to cover the £5 bank charge which is incurred when cashing non-UK £ checks or Wells Fargo money orders).
Online Shop  -  CLICK HERE FOR FULL PRODUCT RANGE
ONLINE SHOP
Buy Online

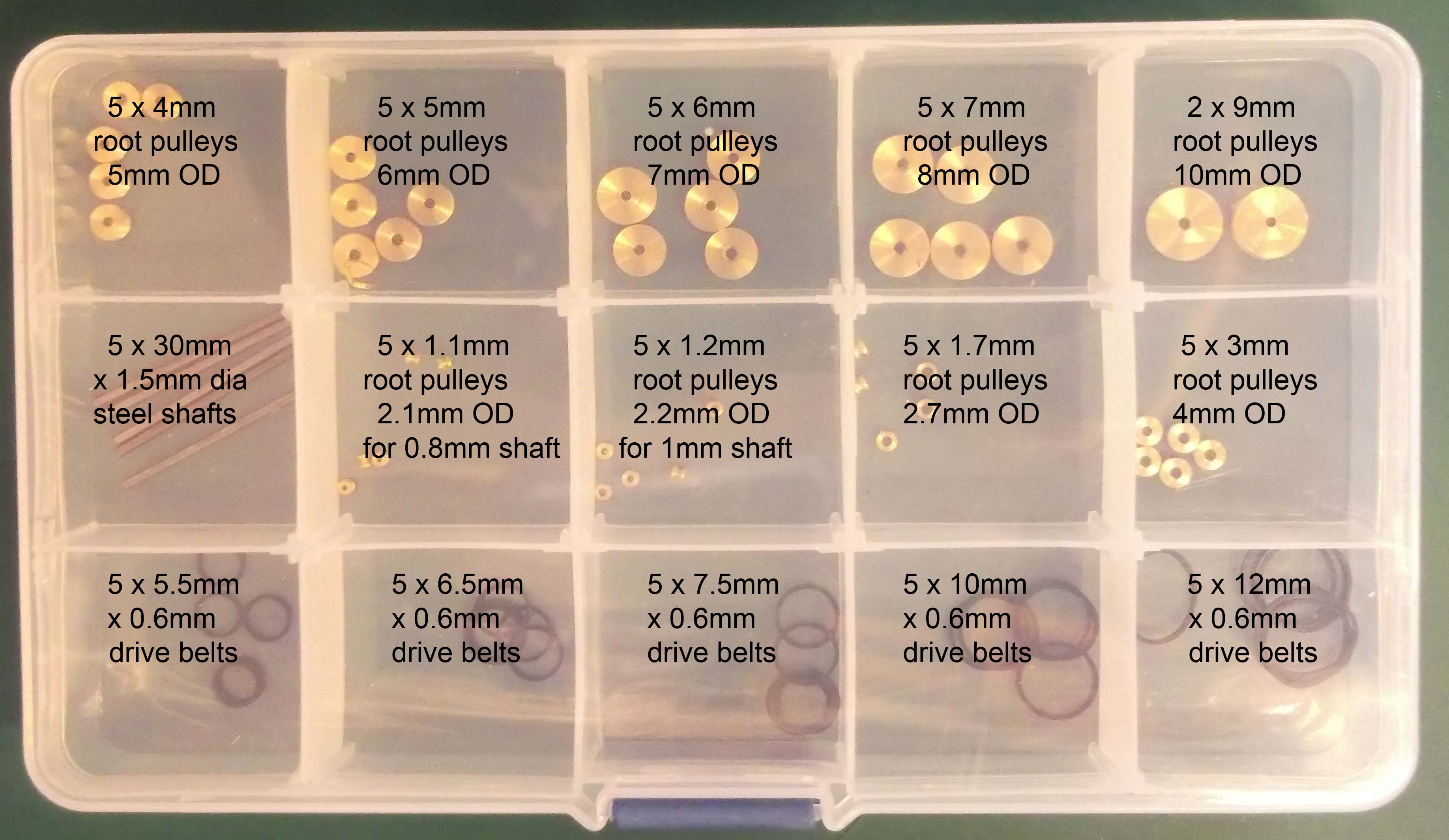

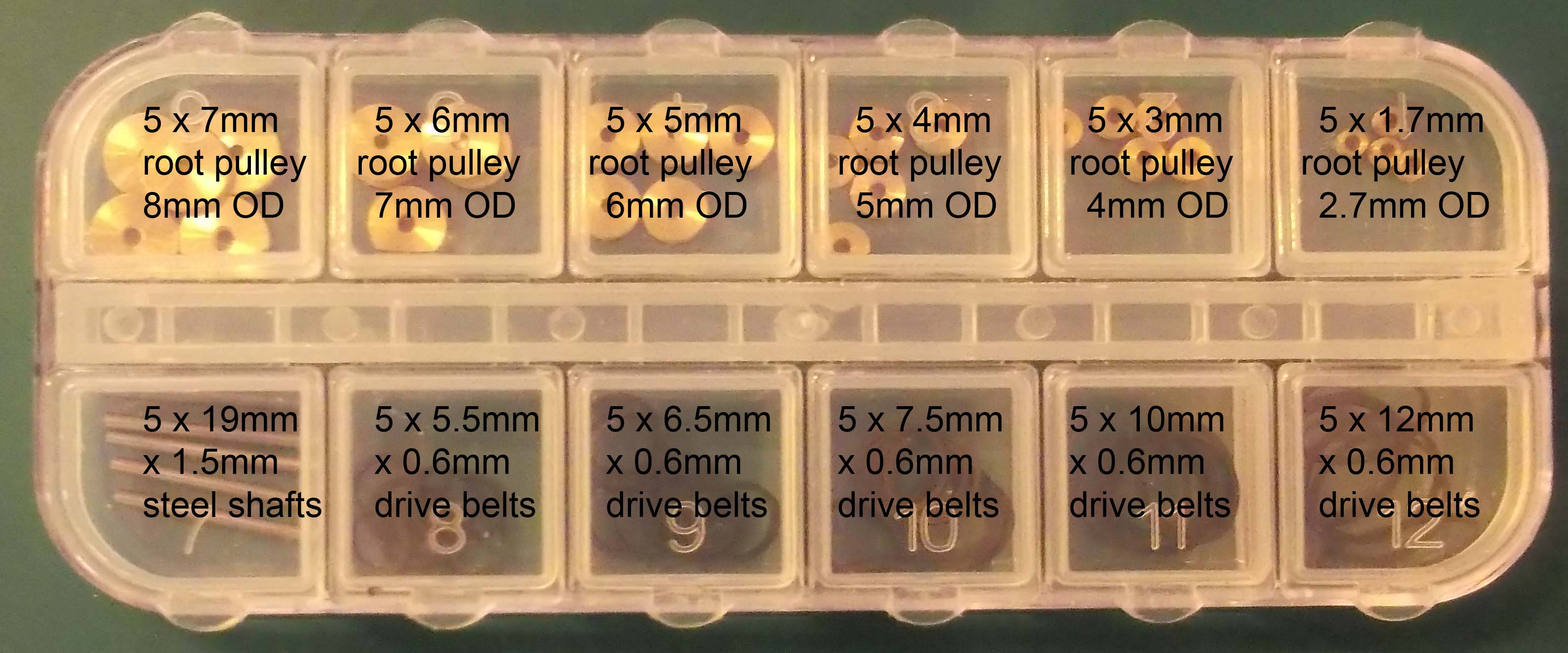

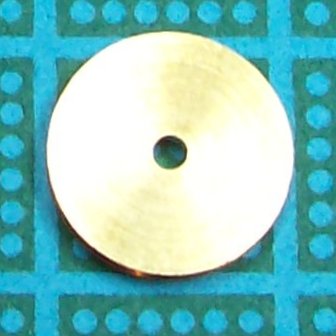

Sub-miniature belt drive - Pulleys & Belts
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Pulley Spacing
Please use either of the links below to view tables of pulley size, reduction ratio and pulley centre/axle spacing.

Click here for a spreadsheet based belt length calculator

Click here for non-functioning PDF version

Note that the reduction ratios in these files are adjusted for the average effective drive diameter of the pulleys whilst driving the 0.6mm cross-section belt.  This results in a reasonably close reflection of the actual reduction achieved.
Click to enlarge
Click to enlarge
1.1mm root pulley
5.5mm ID drive belt
3mm root pulley
6.5mm ID drive belt
5mm root pulley
7.5mm ID drive belt
Friction Drive
Click here for a friction drive application note
7mm OD friction wheel
Click here for a very ingenious belt drive application for 4mm scale standard gauge! http://www.clag.org.uk/axle-hung.html
Click to enlarge
1.2mm root pulley
Click to enlarge
1.7mm root pulley
Click to enlarge
10mm ID drive belt
Click to enlarge

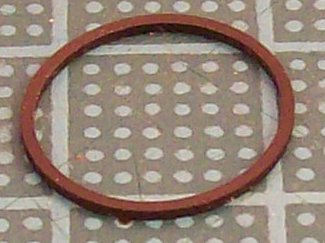

12mm ID drive belt
