I became interested in industrial narrow gauge over 10 years ago after visits to the Amberley museum. The small internal
combustion locos had a strong appeal which grew even stronger after taking part in a driving session at Amberley with a group
of other enthusiasts. This made me want to model both the small IC locos and the chalk pit industrial scenario.

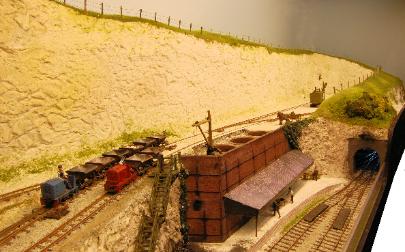

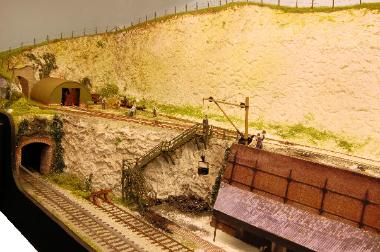

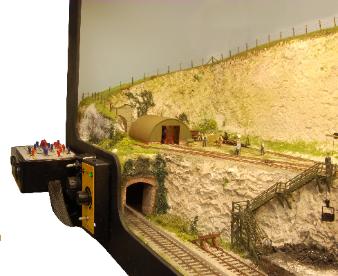

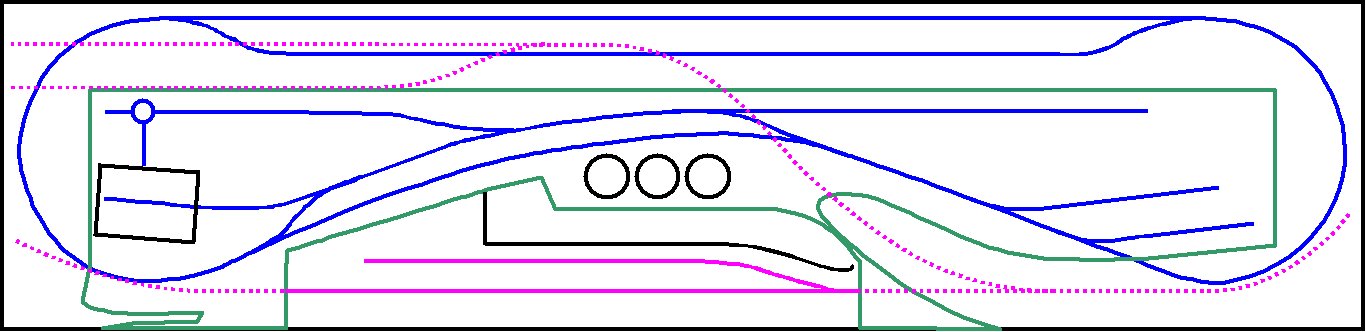

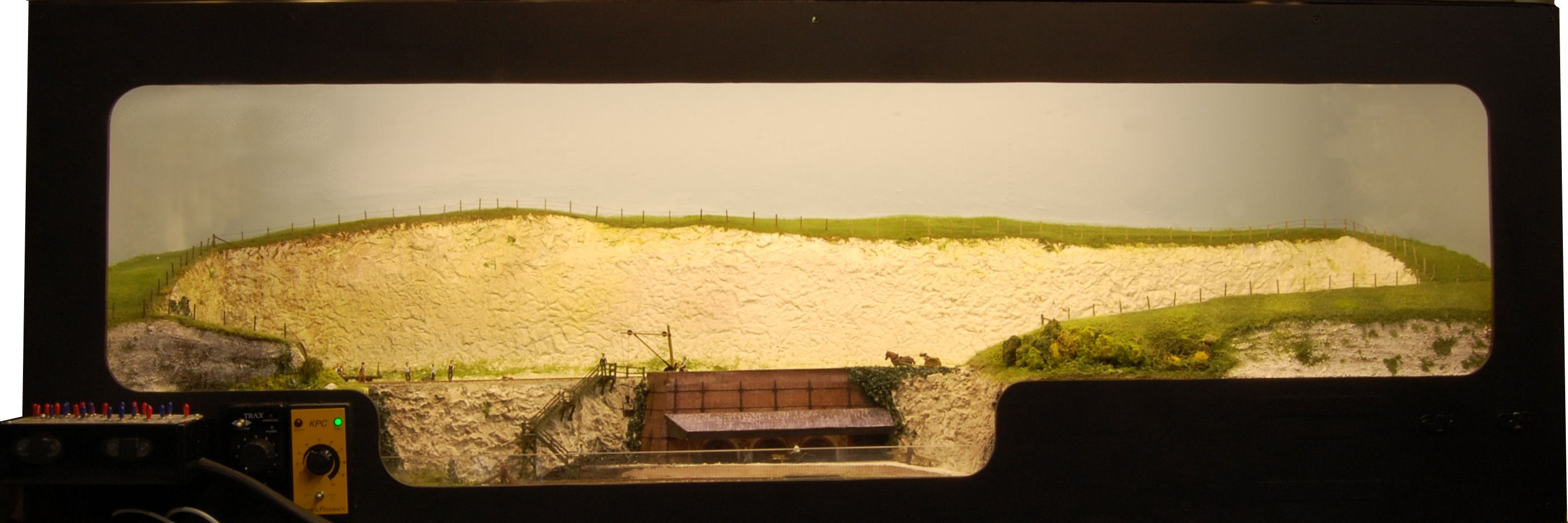

The layout is 5ft x 15in in size and consists of three scenes; a chalk pit working, three lime kilns and the engine shed/utility

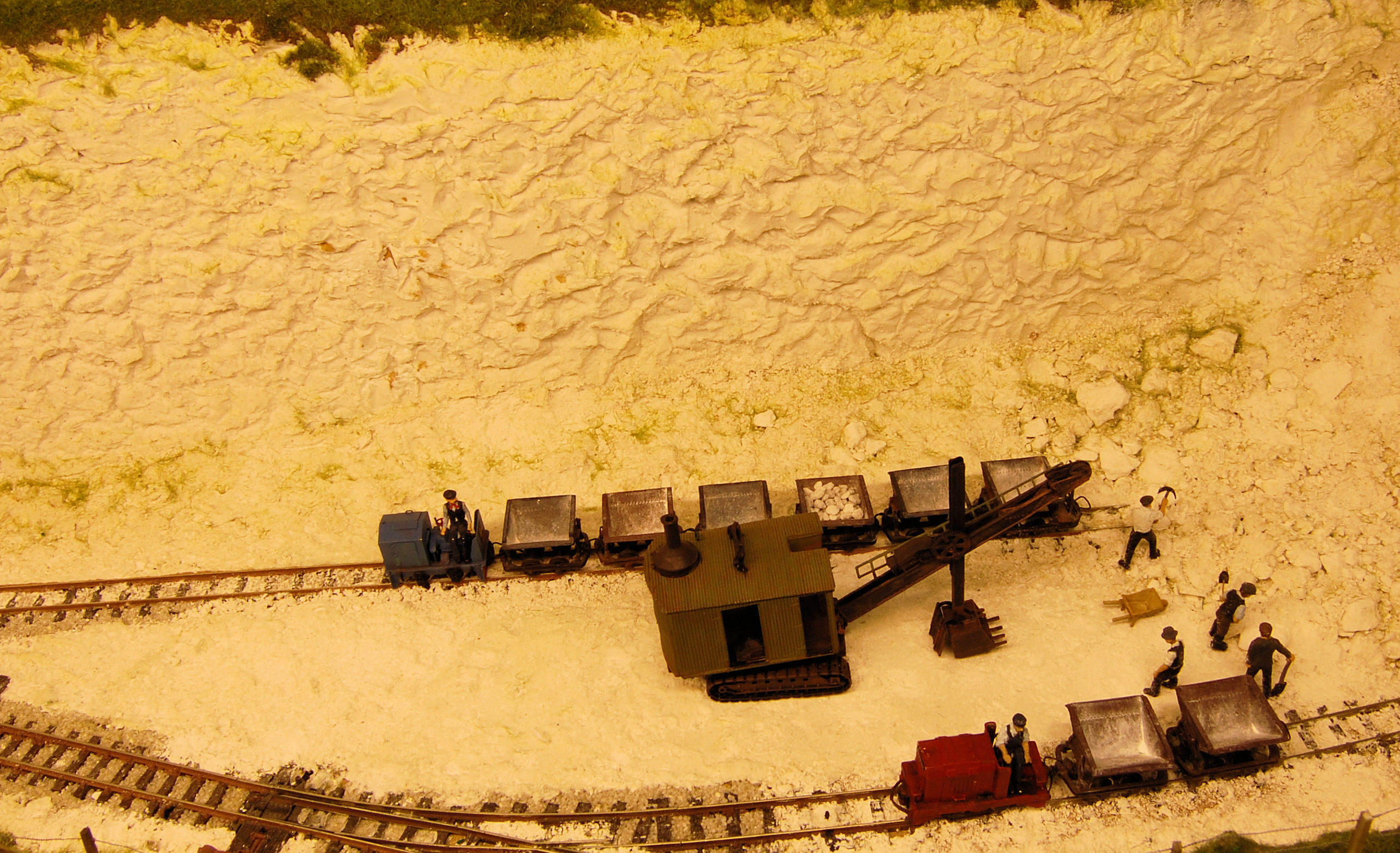

area located in historic workings. The aim of the layout is to illustrate the removal of chalk from the working face and its
transportation to the lime kilns for processing. Chalk trains can also arrive via the tunnel coming from ‘other pits’. In
the protoype chalk is tipped directly into the kilns and layered with coal. After dropping through the kiln being heated by the
burning coal lime is removed from the bottom of the kilns and loaded into standard gauge wagons for shipment to its various
possible building and agricultural uses. The engine shed and utility area provides facilities for refuelling and maintaining the
locos, and repairing of rolling stock and is cluttered with various hopefully appropriate junk. The kilns themselves are based
on ‘continous firing’ kilns at Amberley (No 2 kilns). Operation is fictitious but is based on a combination of Betchworth
and Oxted lime works.
The narrow gauge motive power is a selection of small IC locos and at present comprise two O&K RL1c, one 20HP Simplex,
one 40HP protected Simplex and a Ransomes and Rapier 20HP, accompanied by a collection of various skips (V tippers).
The standard gauge rolling stock at present consists of a Hornby ‘Terrier’ and some open wagons.
