FEATURES
> Easy fold-up construction, limited soldering required.
> Complete kit with motor & gears.
> Etched nickel-silver chassis.
> 9mm gauge.

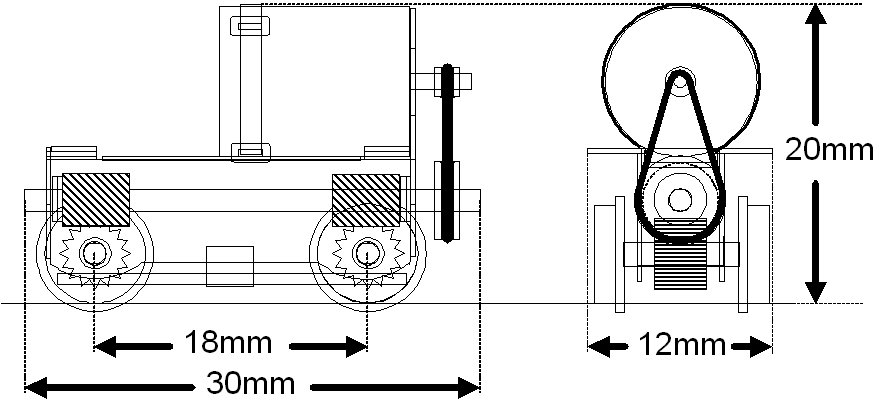

> 6mm RP25 wheelsets, 18mm wheelbase
> Alternative 5.6mm wheelsets.
> 1:46 reduction from motor shaft to wheels.
> 12V dc operation, easy to fit with DCC.
Online Shop  -  CLICK HERE FOR FULL PRODUCT RANGE
ONLINE SHOP
Buy Online
Meridian Models

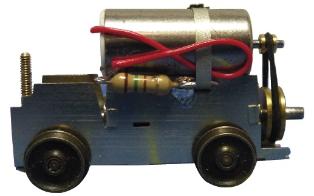

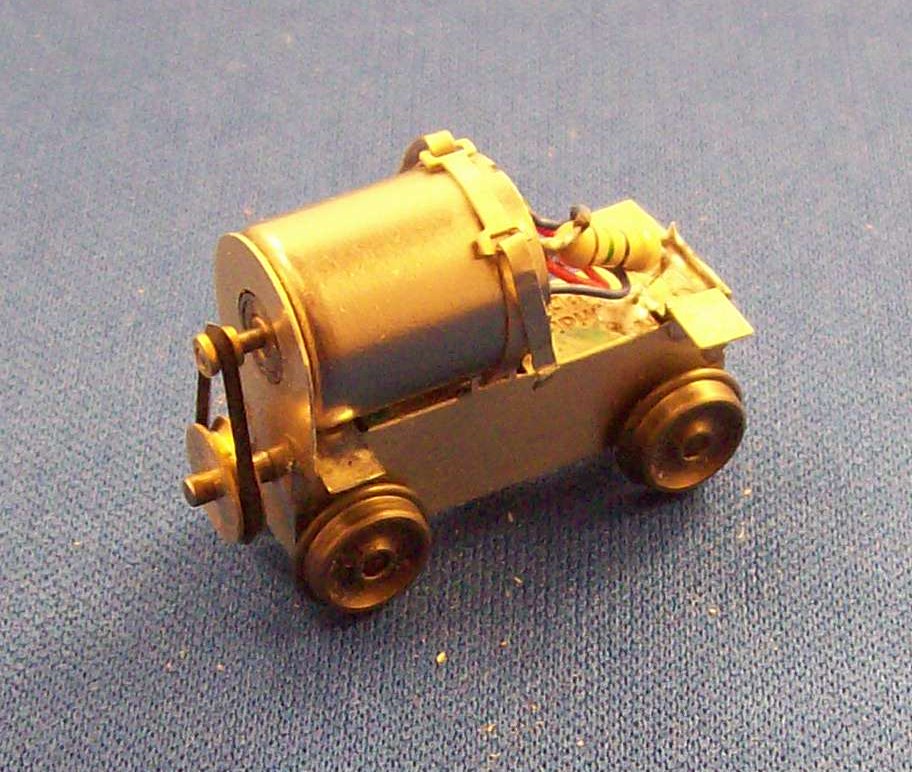

MPD18 Mk 2 Motor Bogie
Click here for instructions PDF file
This motor bogie was initially designed to fit the Meridian/Maquette
Billard T75 and Meridian 40HP Simplex kits but is also a useful
general purpose chassis.  It has the same wheelbase as the old
Grafar motor bogie (although a larger superstructure).

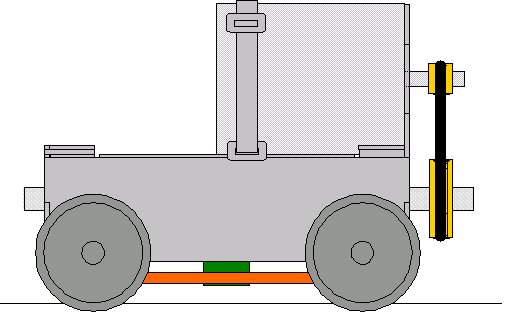

The chassis is a simple fold-up construction.  Brackets are provided
for mounting the chassis to the Billard or 40HP Simplex kits, and
can be adapted to mount in other locos. The chassis can be used
with DCC.  A low value dropper resistor is included with the kit as
this improves running with feedback controllers.
Please see my ONLINE SHOP for details of pricing & postage & packing
You can purchase the 40HP Simplex
(protected and armoured) and Billard
T75 loco kits for which this chassis
was designed from Meridian Models
