Re-motoring a Bachmann    HO/Gn15 bogie
tm

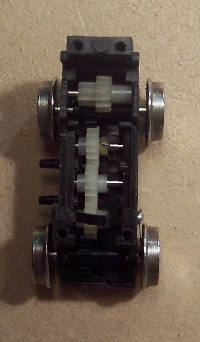

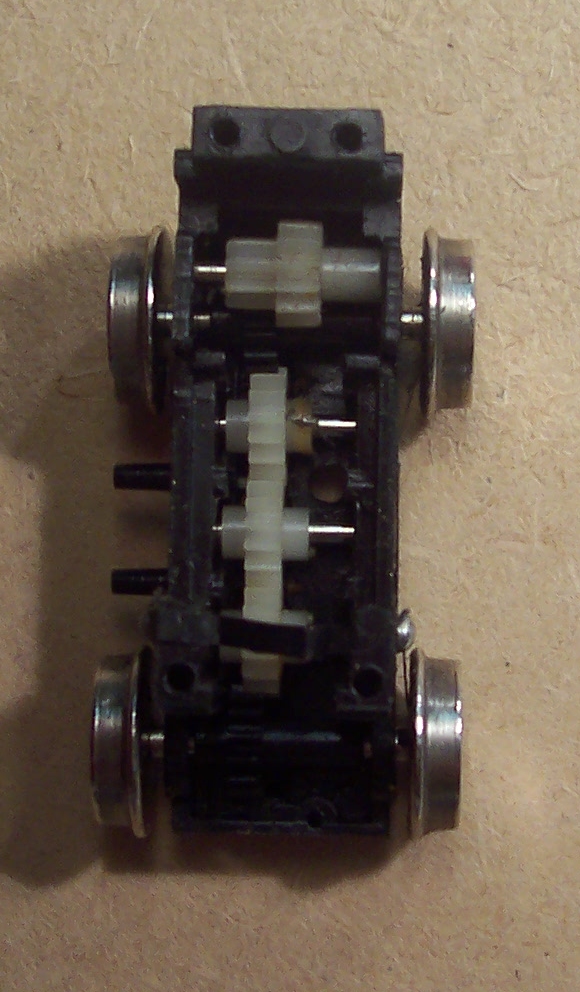

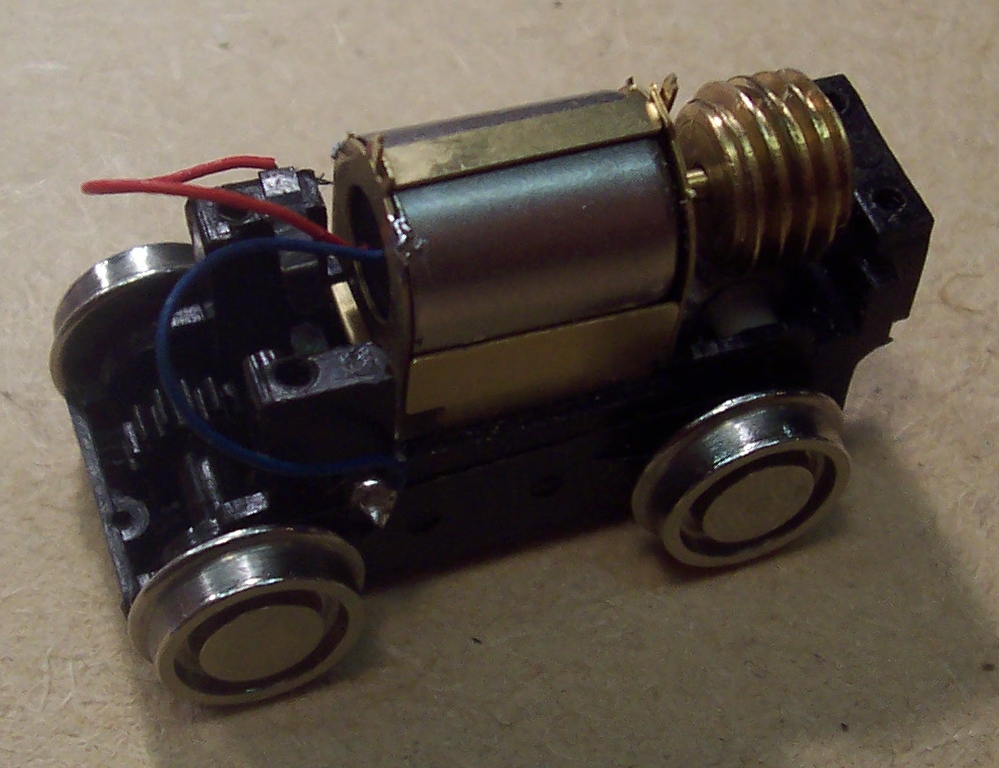

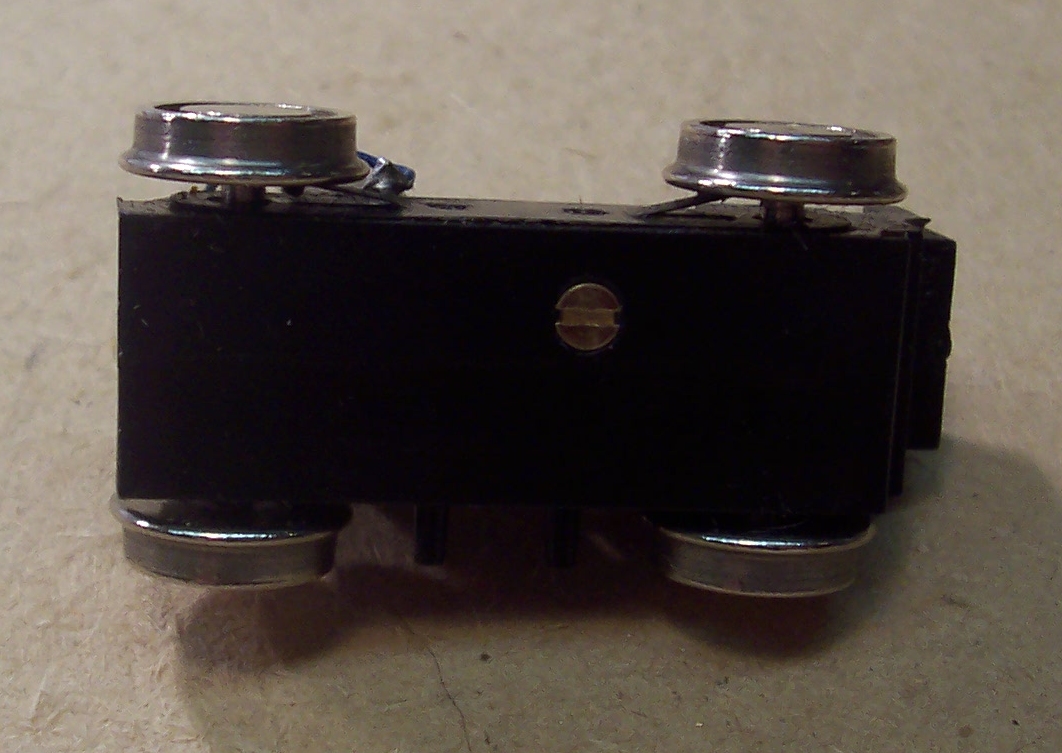

This sequence of photos shows how to re-motor
a Bachmann HO scale GE44 bogie using the
standard

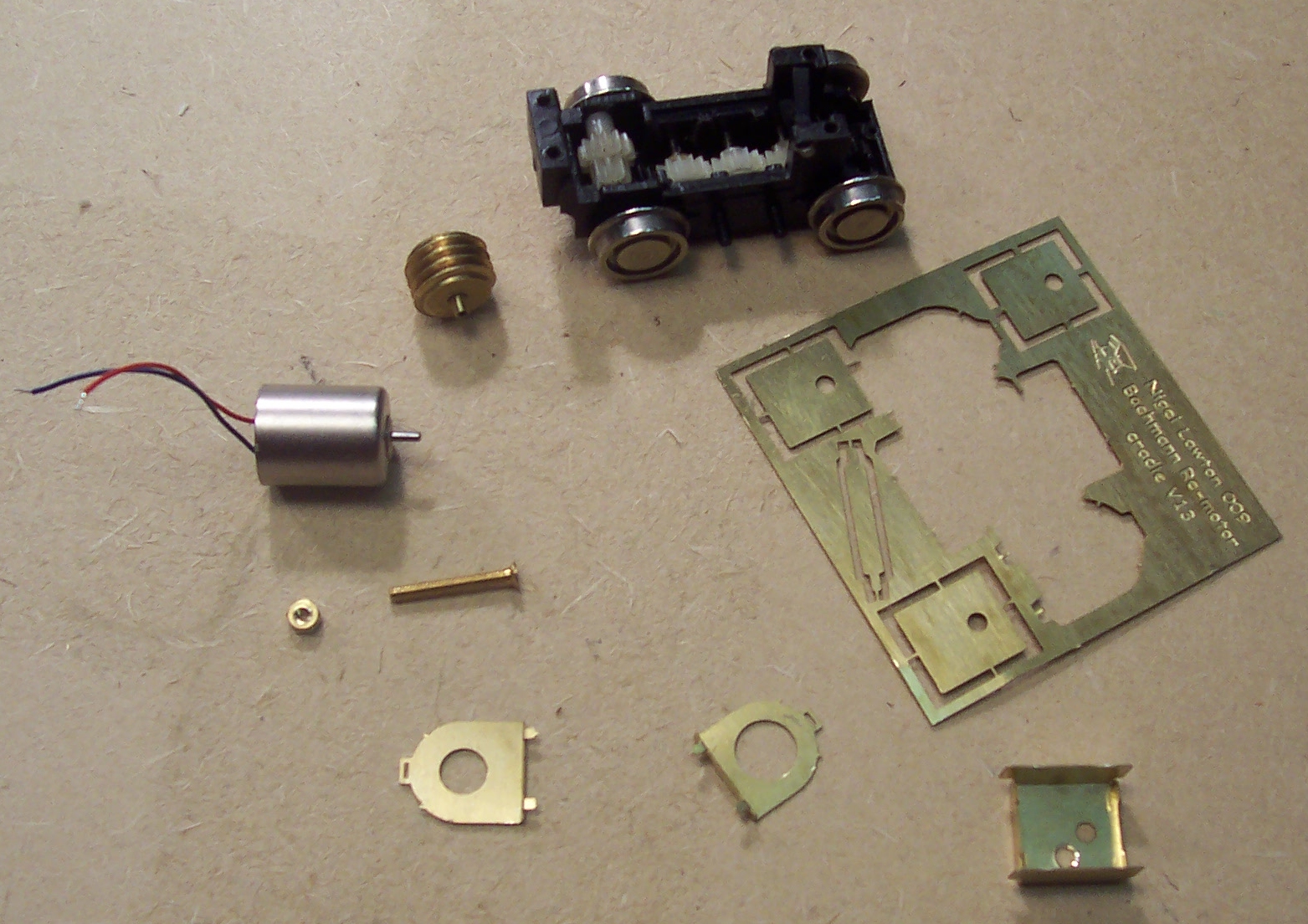

Bachmann remotor kit.   This bogie and
the very similar 70 tonner bogie are used by
Gn15 modellers as a basis for various 4 wheel

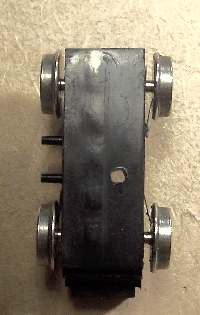

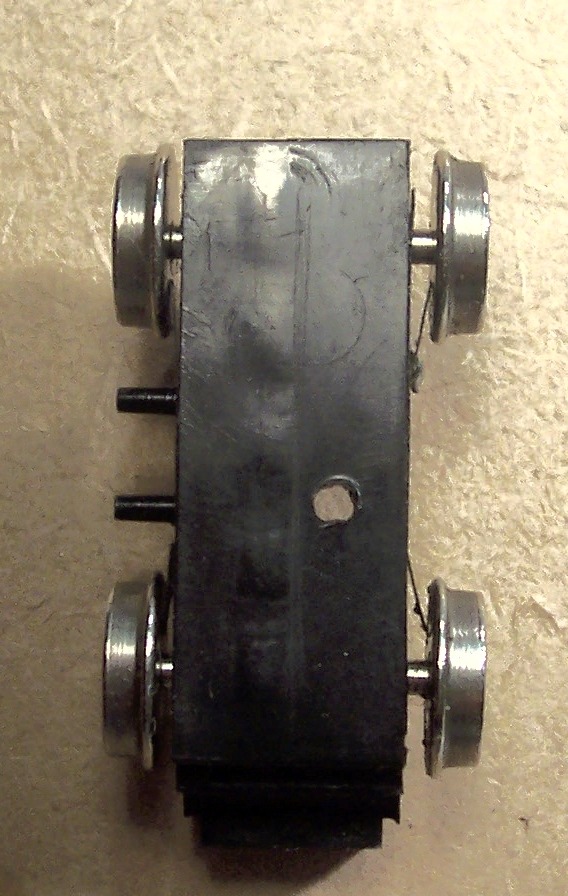

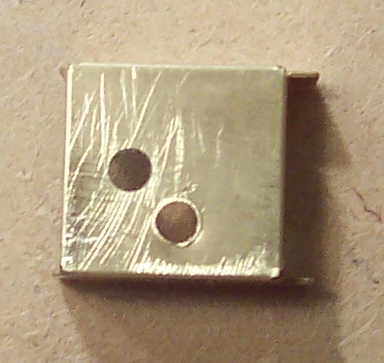

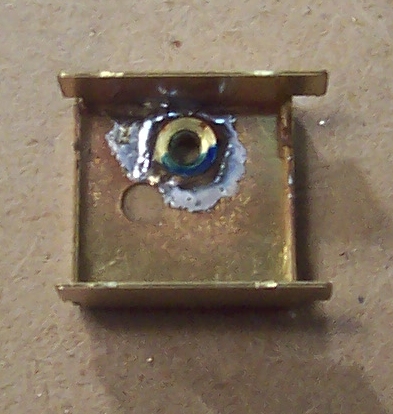

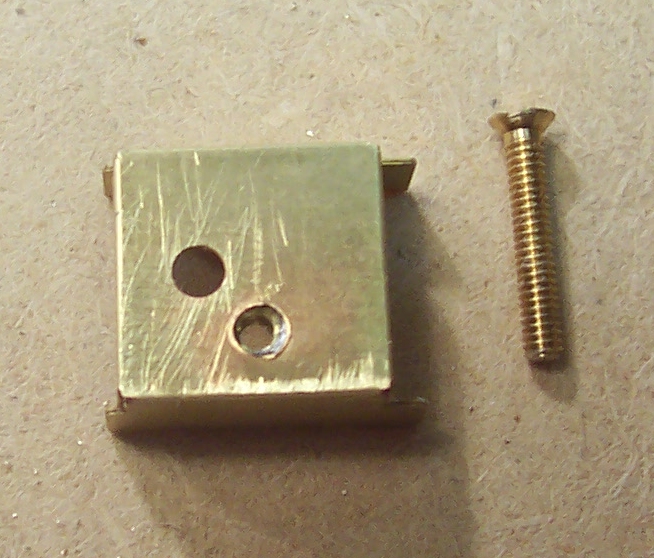

narrow gauge locos. An additional hole must be
drilled in the base but otherwise the construction

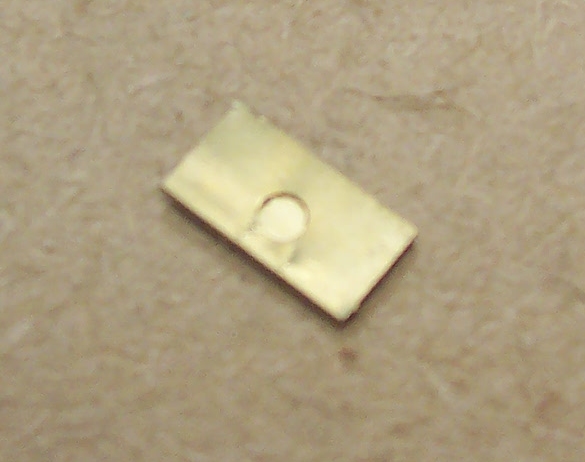

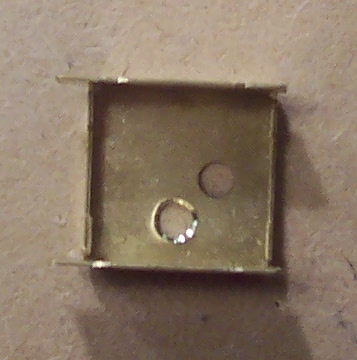

is standard.  Fold one of the thick packing pieces
in half to form the packing piece shown.  The
photos can all be enlarged by clicking on them.
Use these photos in conjunction with the
Bachmann remotor kit instructions.  Email me if
you have any questions.
